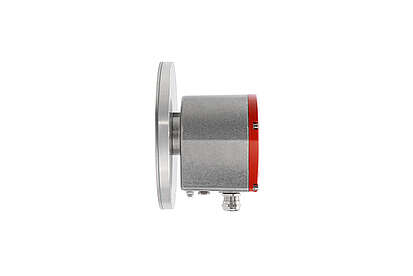

Mechanical membrane switch

Reliable level measurement with mechanical switch

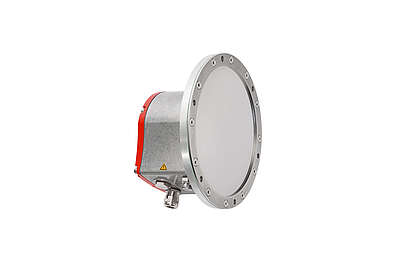

The MBA100 mechanical switch reliably measures the point level in free-flowing bulk solids such as granulates, powders or animal feed. Light pressure of the solid on the stainless steel membrane triggers a switching operation - a weight of 950 grams is sufficient for this. This activates a microswitch that switches an electrical signal. The device itself does not require electricity to function.

Find out more about the MBA100! Important information and details about the product can be downloaded here.

Operating instructions MBA100 Brochure level measurement

Product information

  • Maintenance-free measurement technology
  • Flush installation
  • Stepless adjustability
  • ATEX / IECEx certified
  • Solid construction
  • High temperature resistance
Anwendung des MBA100 im Schüttgutsilo

Advantages of the MBA100

Whether overfill detection on conveyor belts and transfer stations or protection against blockages in downpipes and bucket elevators: The MBA100 fulfills key tasks in level measurement of free-flowing bulk solids.

The purely mechanical level indicator is particularly easy to use. Simply attach it to the silo flange using screws to connect the signal cable and put the MBA100 into operation.

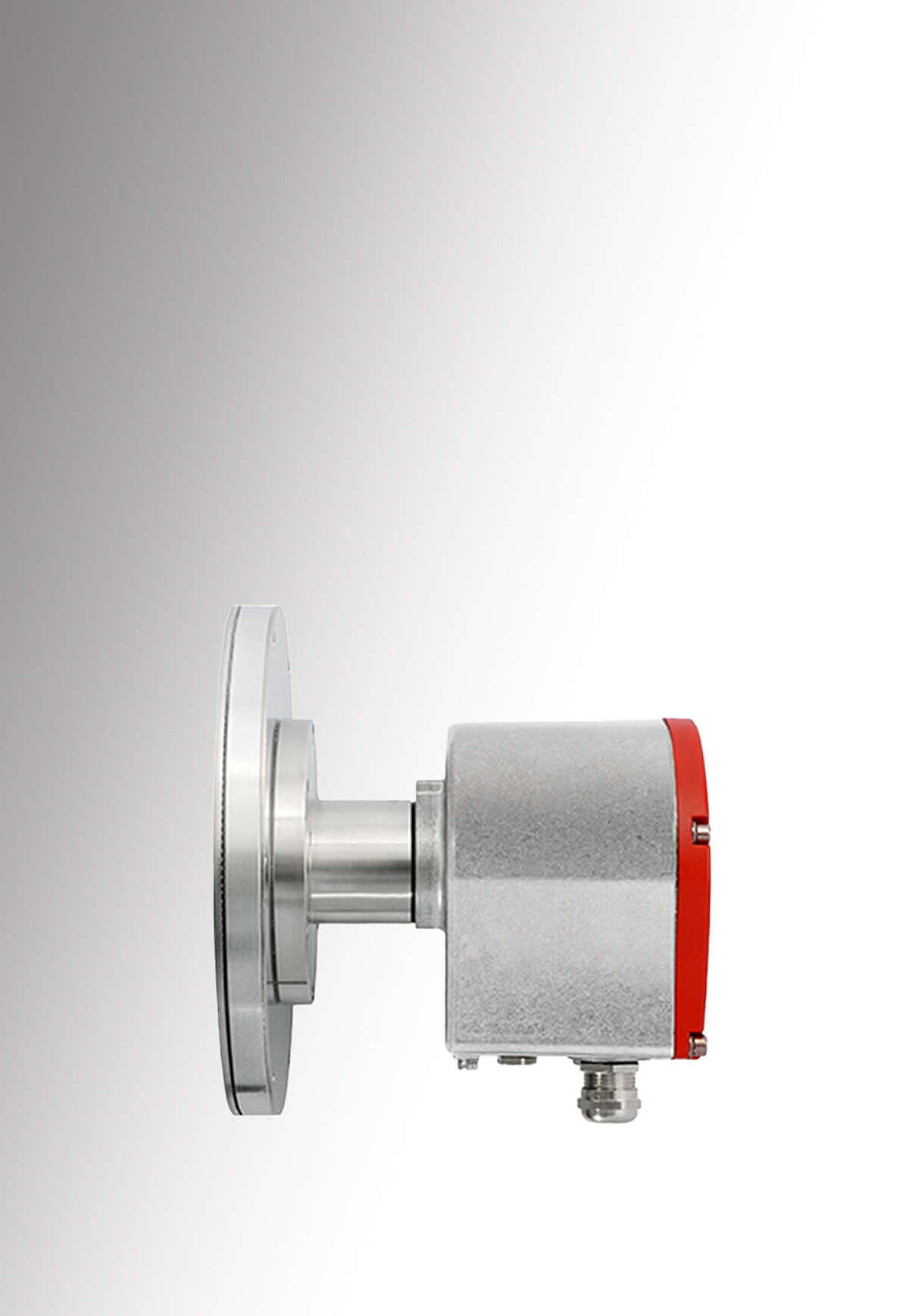

Thanks to its heat-resistant design, the MBA100 can withstand temperatures of up to 300 °C: a spacer tube, an additional flange and a stainless steel plate prevent the temperature in the silo from being transferred to the external device head.

Features of our products for level measurement

What characterises our MBA100

Easy handling

No calibration or adjustment necessary

Customised products

Various flange dimensions and materials possible, parts in contact with the product made of stainless steel

Energy efficiency

No power consumption during operation and no supply voltage

No blockages

Prevention of blockages in downpipes and bucket elevators

MBA product configurator

Configure exactly the right MBA measuring device for your individual application! #tothepoint
